Dana Dolly Rails+Slider Stands Kit

Description

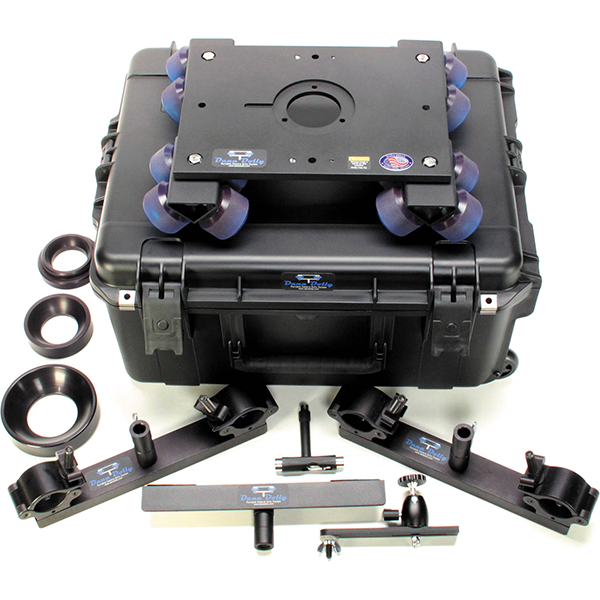

The Dana Dolly Portable Dolly System Rental Kit with universal track ends is a heavy duty camera dolly platform that rides on 16 custom modified soft polyurethane wheels that resist flat spotting and use ABEC-7 rated precision bearings providing you with extremely smooth dolly shots. This kit is complete with 75, 100, and 150mm bowl adapters, and comes in a custom flight case. The wheel trucks swivel, allowing the dolly to ride on available straight or curved track, which you must source separately. The manufacturer recommends using standard speed rail or Schedule 80 aluminum pipe of compatible size. The dolly includes two universal track ends, which accept inch and a quarter pipe (standard speed rail) up to 1.9″ O.D., and fit into available standard Junior stand receivers or 5/8″ Baby pins. A center support is included for long track runs or when using heavy cameras.

• Dana Dolly

• Universal Track Ends x2

• Center Support

• 75mm Bowl Adapter

• 100mm Bowl Adapter

• 3″ Washer

• T-Tool

• Flight Case

• 6ft Rails

• Mathews Slider Stands 2X

• Material of Construction: Dolly Platform: Machined 6061 Aluminum Track Wheels: 16 x Soft Polyurethane

• Bearings: ABEC-7 rated precision bearings

• Load Capacity: 100 lb (45.4 kg)

• Head Fitting: Incorporated: Mitchell Mount With included adapters: 75/100/150mm

• Accessory Mounting: 2 x 3/8″ Through Hole 2 x 1/4″-20 Threaded 2 x 3/8″-16 Threaded

• Track Format: Outer Diameter: 1.5 to 1.9″ (3.8 to 4.8 cm) Truck Distance: Just under 12″ (30.5 cm) on center

• Temperature Max: 100°F (37.8°C)

• Dimensions (L x W): Dolly: 14 x 10″ (35.6 x 25.4 cm)

• Weight: 45 lb (20.4 kg)
