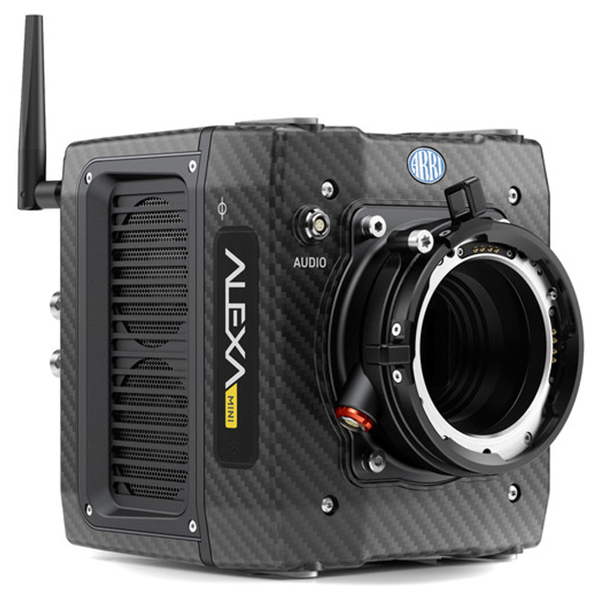

Arri Alexa Mini 4:3

Hot

Arri Alexa Mini 4:3

From: $1,300.00

  • Description
  • Kit
  • Specs

Description

Compact lightweight and self – contained, the ARRI ALEXA Mini is a versatile additional tool in the ALEXA Cameras range. Crews will find that the ALEXA Mini perfectly complements their ALEXA shooting kit, eliminating the complications of working with third – party Cameras for specialized shots and keeping everything within a single system that is trusted all over the world

  • ARRI Alexa Mini Camera Body with 4:3 license
  • Arri MVF-1 Alexa Mini Viewfinder
  • PL-MOUNT-LDS-LB-TITAN-CPL
  • EF LENS MOUNT
  • VIEWFINDER-MOUNTING-BRACKET
  • Mini Adapter Plate
  • Alexa-Mini-Baseplate
  • Mini-Side-Brackets
  • Bridge plate Adapter
  • Rod Mounting Bracket
  • 15mm Reduction Insert
  • Center Camera Handle, CCH-2
  • Support rods 340mm - 15mm
  • Camera Shoulder Pad
  • CFast 2.0 Card 128 GB X2
  • CFast 2.0 Card Reader
  • EXT-RS Adapter
  • Abox xlr audio box
  • Lemo to lemo timecode cable
  • Bebop V-Mount Battery Adapter f/ Mini
  • usb Thumb Drive x1
  • Hard Case
  • Camera type: 35 format film-style digital camera with lightweight and compact carbon body, 4:3/16:9 switchable active sensor area, support for ARRI MVF-1 viewfinder, built-in remote control capabilities via ARRI Electronic Control System and Wi-Fi, support for cforce motors, built-in motorized ND filters, interchangable lens mounts and ARRI Lens Data System.
  • Dimensions: Length: 185 mm/7.3"
  • Photo Sites: ~ 2.3 kg/5 lbs (camera body with titanium PL lens mount)
  • Sensor: 35 mm format ARRI ALEV III CMOS with Bayer pattern color filter array
  • Photo sites (with surround view):
    16:9 ProRes HD 2880x1620
    16:9 ProRes 2K 2867x1613
    16:9 ProRes 3.2K 3200x1800
    16:9 ProRes 4K UHD 3200x1800 4:3 ProRes 2.8K 2880x2160 *
    6:5 ProRes De-squeezed to 2K 2560x2145 *
    8:9 ProRes De-squeezed to HD 1920x2160 *
    16:9 ARRIRAW 2.8K 2880x2160 *
    Open Gate ARRIRAW 3.4K 3414x2198 *
  • Weight: Shutter Electronic shutter, 5.0° to 356.0°
  • Exposure latitude: 14 stops over the entire sensitivity range from EI 160 to EI 320 as measured with the ARRI Dynamic Range Test Chart (DRTC-1)
  • Exposure index: EI 800 base sensitivity
  • Filters: Built-in motorized ND filters 0.6, 1.2, 2.1
  • Recording media: CFast 2.0 memory cards
  • Recording formats: 16:9 ProRes HD (1920 x 1080)
    16:9 ProRes 2K (2048 x 1152)
    16:9 ProRes 3.2K (3200 x 1800)
    16:9 ProRes 4K UHD (3840 x 2160)
    4:3 ProRes 2.8K (2880 x 2160) *
    6:5 ProRes De-squeezed to 2K (2048 x 858) *
    8:9 ProRes De-squeezed to HD (1920 x 1080) *
    16:9 ARRIRAW 2.8K (2880 x 1620) *
    Open Gate ARRIRAW 3.4K (3414 x 2198) * (The pixel count in brackets shows the number of pixels in the recorded file.)
