Oconnor Cine Follow Focus

Oconnor Cine Follow Focus

From: $75.00

  • Description
  • Kit
  • Specs

Description

The CFF-1’s multifunctional, modular design eliminates the hassle of having to juggle separate bridge plates. A single, easy to use snap-on bridge clamps effortlessly onto either 15mm or 19mm studio rod systems (the kit also comes with 15mm LWS bridge). The OConnor integrated approach lets the operator straddle the line between both standards with ease and efficiency. With the lowest clearance available in a double-sided studio unit, OConnor’s follow focus is ideal for large diameter lenses—and protects the user’s equipment investment by ensuring compatibility with optical systems now and into the future. The CFF-1 integrates seamlessly with existing popular accessories such as whips, gears, and cranks, while creating a new standard in compatibility. The Kit is provided with a speed crank and a flexible drive with isolator handle for remote focus pulls.

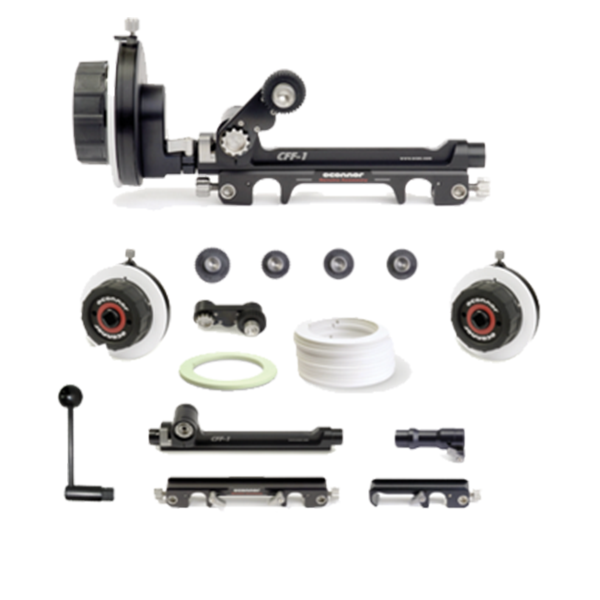

  • Cine Follow Focus One
  • Main Bridge
  • Swing Arm
  • Handwheel for CFF-1 Follow Focus x1
  • Studio Rod Bridge
  • Driver Gear (43 Teeth, 0.8M, 6mm Face, Cine)
  • Driver Gear (35 Teeth, 0.8M, 10mm Face, Cine)
  • Driver Gear (50 Teeth, 0.6M, 7.5mm Face, Fujinon ENG Focus)
  • Driver Gear (60 Teeth, 0.5M, 7.5mm Face, Canon ENG Focus)
  • Marking Disks (Set of 10)
  • Pelican Storm Case with Custom-Cut High Density Foam for CFF-1
  • Weight (incl. main bridge, studio rod, handwheel): 1.83 lbs (0.83 kg)
  • Weight of handwheel: 0.73 lbs (0.33 kg)
  • Dimensions (WxHxD): 11 x 5.5 x 5.1 in. (280 x 140 x 130 mm)
  • Dimensions of Cine handwheel: Ø4 x 3.2 in. (Ø102 x 81 mm)
  • Positioning of driver gear: Swing arm, dovetail slide
  • Driver gear coupling: Standard serrated star
  • Module coupling system: Backlash-free
  • Drive ratio: 35:19 (1:1.84)
  • Maximum lens diameter: Ø182 mm
  • Standard camera rods: Studio 15 / 19 mm]
