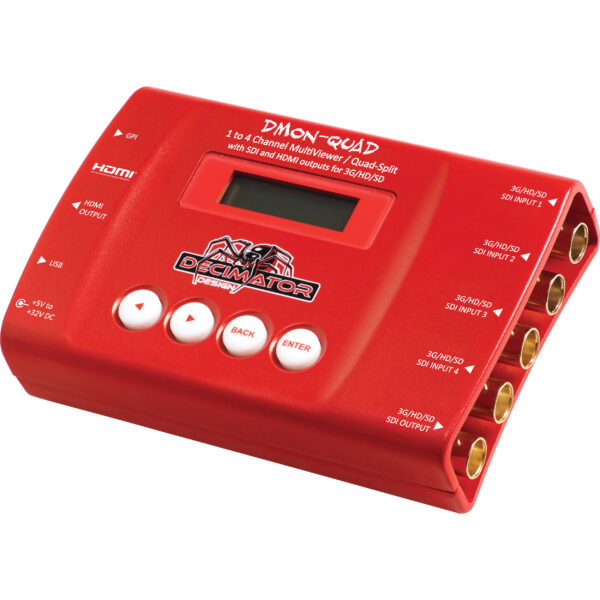

Decimator DMON-QUAD 4-Channel 3G/HD/SD-SDI QUAD Split Multi-Viewer with HDMI Outputs

From: $100.00

Reviews Summary by AI:

Description

The DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications. It supports a variety of resolutions and formats up to 1080p60 over SDI, and can arbitrarily mix formats and aspect ratios. The four SDI inputs can be output simultaneously over the HDMI or SDI outputs for a quad-view display.

  • Supports 3G-SDI level A and B on inputs and output, allowing conversion between 3G level A and B
  • 16-character UMD overlay and 8-channel audio metering overlay per window with individual on/off, custom positioning, and size adjustment
  • Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
  • Robust Aluminium Case with easy to use LCD and button control system.
  • Low latency frame buffering for each input allowing non-synchronous inputs
  • Horizontal and/or vertical image flipping per window

Features the following 14 modes:

  1. SDI IN to HDMI and SDI OUT
    SDI IN to SDI OUT and HDMI IN to HDMI OUT

SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT

SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT

HDMI IN to SDI OUT and SDI IN to HDMI OUT

HDMI IN to HDMI and SDI OUT

HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT

HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT

Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT

Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT

Scaled SDI IN to HDMI and SDI OUT

Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT

Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT

Scaled HDMI IN to HDMI and SDI OUT

4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
The audio pairs in the SDI and HDMI outputs can be rearranged as required.
Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

Decimator DMON Quad

HDMI

Micro USB Power Adapter
